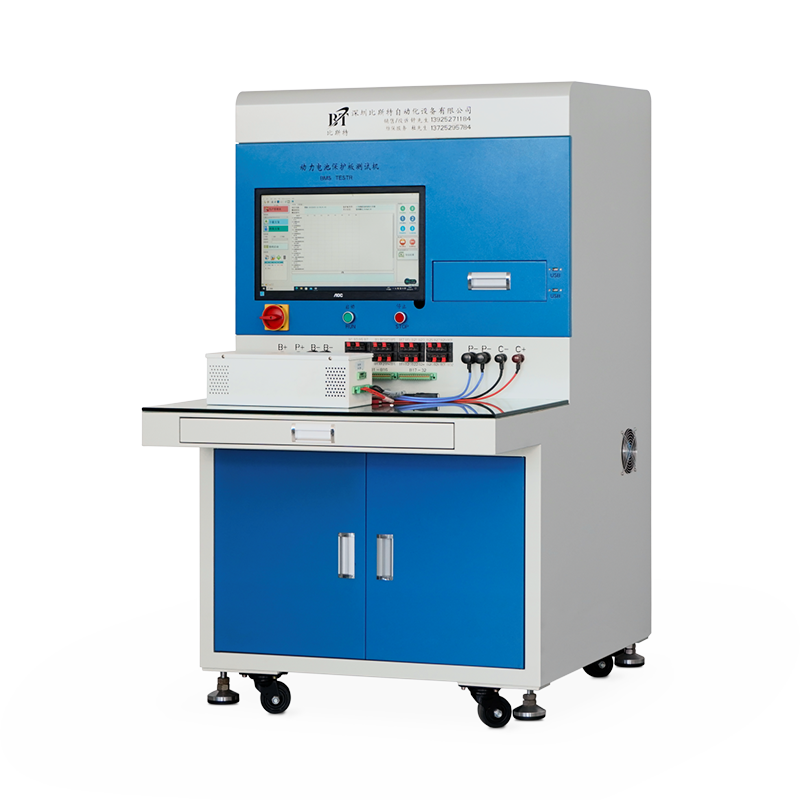

BT-10 Series Lithium Battery Protection Board Tester

2025-11-20 14:46:54

Product features：


    BT Muli-function Protection Board testing system is mainly used to test whether the Power Battery Protection Board is within the parameters range,thus providing a set of testing standards for the staf.The ufility model is mainly used for testing the power battery protection plate of the power battery manufacturers as well as the power battery manufacturers。


　　一、Main function

　　BT Muli-function Protection Board testing system is mainly used to test whether the Power Battery Protection Board is within the parameters range,thus providing a set of testing standards for the staf.The ufility model is mainly used for testing the power battery protection plate of the power battery manufacturers as well as the power battery manufacturers。

　　二、Product parameters


Parameters
Test Range
Precision
Overdischarge protection curent		0-50A/0-100A±0.1A

Number of test stings		1月10日

Equalizing open voltage		0-5V±5mV

Reference Voltage
Temary  lithium(3.8V),
Lithium ron phosphate(3.0V)

Equalizing real time current		0-1000mA±1mA

Overcurent protection delay		0-15S±1mS

Overcharge protection voltage		0-5V±5mV
Overcharge protection delay		0-20S±1mS

Discharge protection voltage		0-5V±5mV
Overdischarge protection delay		0-20S±1mS

Overcharge Recovery Voltage
(self-recovery)		0-5V±5mV
Total self-consumption		0-10mA±5uA

Single section self onsumpive power		0-500uA±1uA

Discharge Recovery Voltage
(self-recovery)		0-5V±5mV

Loop Resistance		0-500mΩ±1mΩ

Overcharge protection current		0-50A±0.1A
Short Circuit Protecion (over 10 senies)		0-9999us±1uS
